Eaton General Purpose Variable Speed Drives
Features:
  • Active energy control, minimizes energy losses in your motor by dynamically adjusting V/Hz curve to optimize efficiency
  • Latest Generation Power and Control Components
  • Onboard communications
    • EtherNet/IP, ModbusT/TCP
    • RS-485: Modbus RTU
    • BACnet, MS/TP, Onboard I/O
    • 8DI, 1DO
    • 2AI, 2AO
    • 3FC relays
  • 5% DC link choke
  • Real-time clock with battery backup
  • Conformal coated boards standard
  • EMC filter standard /Brake chopper standard (FR1–FR3)
  • Graphic LCD keypad display, Improves Navigation Efficiency, Local/Remote Operation from Keypad
  • Quick Start Wizard
  • Dynamic Motor Regenerative Energy Management
  • Advanced configuration PC tool
  • Conformal coated boards standard

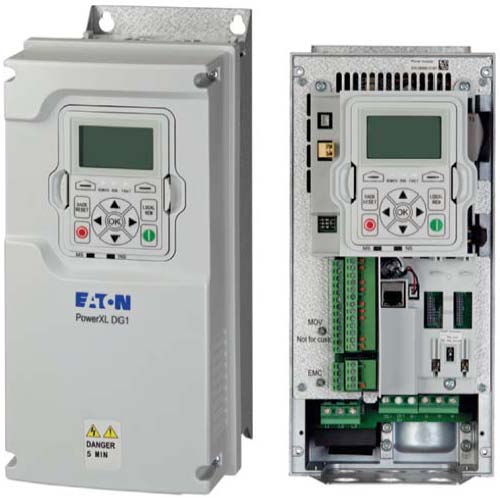

Ideal for water treatment, utility, HVAC, construction and industrial OEMs, the PowerXL DG1 Series from Eaton Corporation is a new, general purpose adjustable frequency drive platform. Engineered for today’s demanding commercial and industrial applications, the DG1 series is equipped with pre-programmed settings for multi-pump fan and PID motor applications.
Brochure
Circuit Protection & Control Products Quick Selection Guide
Difference Between Soft Starters and Adjustable Frequency Drives
Power XL DG1 Installation Manual
Power XL DG1 Quick Start Guide
Power XL DG1 Application Manual
Power XL DG1 Communication Manual
